PVC Gel

EAN: 8710439245744Article No.: 6311154
Fast, thixotropic, THF-free rigid PVC cement.
  • THF-free
  • Fast
  • Does not drip
  • Thixotropic
  • Gap filling

Properties

  • THF-free
  • Fast
  • Does not drip
  • Thixotropic
  • Gap filling

Application

Suitable for:

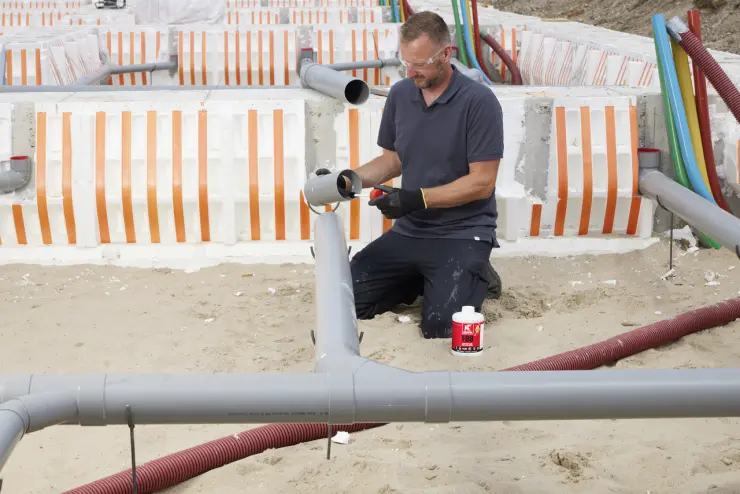

For joining pipes, sockets and fittings with interference fit and loose fit (gap filling) in pressure and drainage systems. With special pipe brush for quick and easy application. Suitable for diameters ≤ 250 mm. Max. 16 bar (PN 16). Maximal tolerances 0.6 mm diametrical clearance / 0.2 mm press fit. Suitable for e.g. pipe systems conforming to EN 1329, 1452, 1453 and 1455.

Handling

Before use

Working conditions

Do not use in temperatures ≤ +5°C.

Coverage

Indication of the number of joints per 1 L:

During use

Directions For Use

1. Cut pipes square, chamfer edges and deburr. 2. Clean surfaces with Griffon Cleaner and Cleaner Cloth. 3. Apply adhesive rapidly and evenly all around (4-6x) on both surfaces (pipe thickly, socket thinly). 4. Assemble joint immediately. Remove excess adhesive. Do not load the joint mechanically for the first 10 minutes. Close packaging immediately after use.

Points of attention

Brush size varies per packaging volume. Use a suitable packaging (brush) for the diameter to be bonded.

After use

Stains/residue

Remove adhesive stains with Griffon Cleaner and Cleaner Cloth.

Storage conditions

Stored in unopened packaging between +5°C and +25°C. Best Before Date (MM/YY): see packaging. Close packaging properly after use and store in a dry, cool, and frost-free location.

Documents

Approval marks & standards
