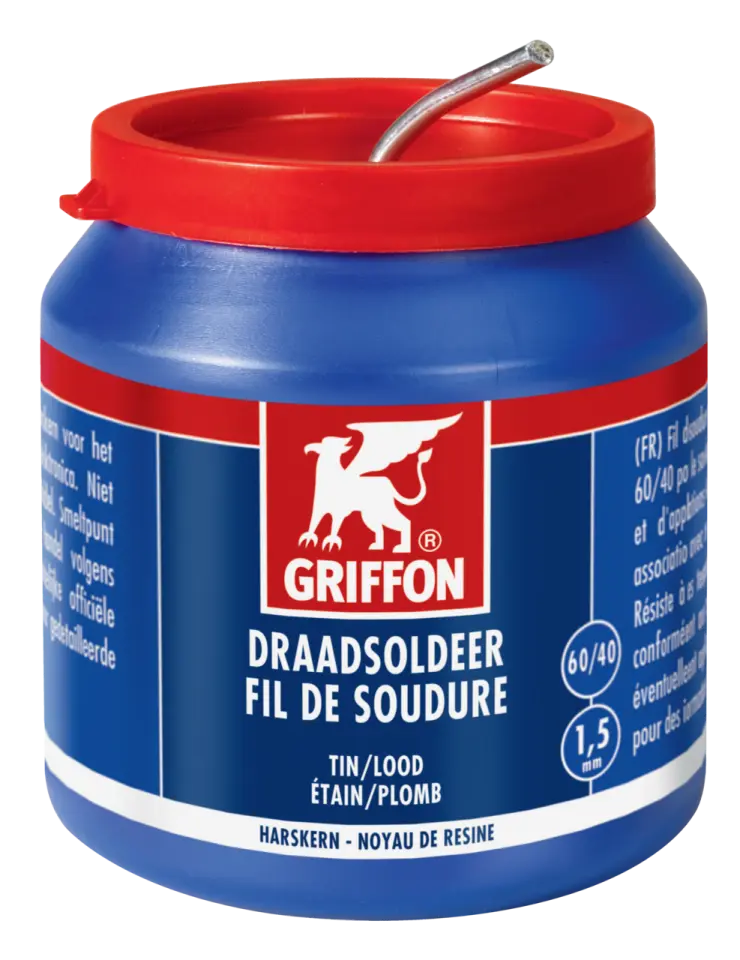

Soldering Wire Tin/Lead 60/40 Resin Core

EAN: 8710439930619Article No.: 1236163
Soldering Wire Tin/Lead 60/40 Resin Core.
  • Tin/Lood 60/40
  • Harskern
  • Ø 1.5 mm
  • Temperatuurbestendig tot 90°C

Properties

  • Tin/Lood 60/40
  • Harskern
  • Ø 1.5 mm
  • Temperatuurbestendig tot 90°C

Application

Suitable for:

For soldering of printed circuit boards and electronics, among others. Do not use wire solder with resin core in combination with a flux.

Not suitable for:

Not suitable for drinking water pipes.

Handling

Before use

Tools

Soldering iron or burner, scouring fibre, heat shield, cloth

During use

Directions For Use

1. Assemble joint. Use only well-fitting parts. 2. Heat joint evenly and add tin solder. Allow the solder to melt onto the soldered seam and not in the flame or on the iron. Completely fill soldered seam. 3. Remove flux residue with alcohol. 4. Allow joint to cool in air.

Points of attention

Clean soldering iron regularly with Griffon Soldering Iron Cleaner.

After use

Stains/residue

Remove any remaining flux using acetone.
