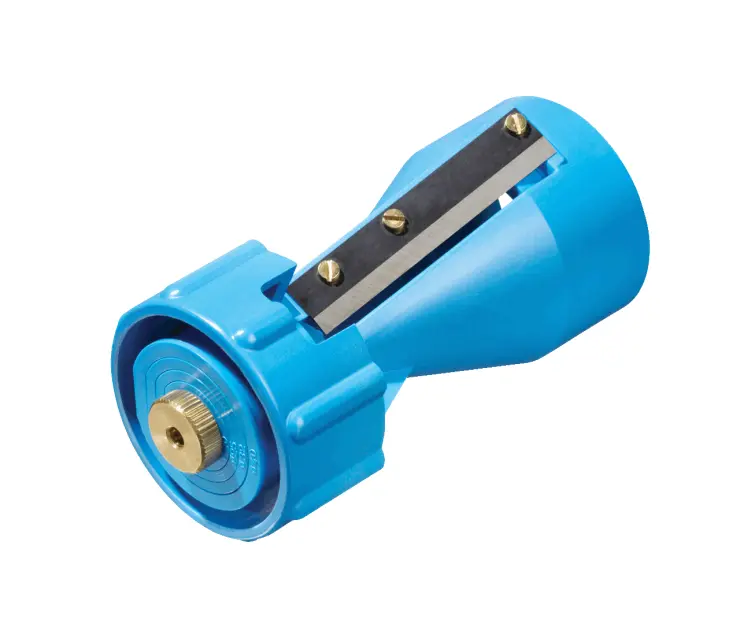

Chamfering Tool

EAN: 8710439201443Article No.: 6307771
For chamfering plastic pipes.
  • Creates a chamfered edge of 15⁰
  • Prevents adhesive 'crowding out'


  • Creates a chamfered edge of 15⁰
  • Prevents adhesive 'crowding out'


Suitable for:

For plastic pipes of PVC, PVC-C, ABS, PP and PE. Suitable for diameters 16 ≤ 63 mm.


Before use

Surface requirements

Synthetic pipes need to be clean, dry and free of grease.

Preparation of product

Five adapter rings for ∅ 20, 25, 32, 40 and 50 mm are integrated into the chamfering tool. To place these: Loosen the screws. Place the adapter rings of the desired diameter (for example, for a diameter of 40 mm place the adapter ring with a diameter of 50 and 40). Tighten the screw (not further than the adapter rings). The other adapter rings can be placed on the rear of the chamfering tool.

During use

Directions For Use

Place the chamfering tool over the pipe and move it around until the entire pipe has a rim of 15⁰.

Points of attention

Do not apply pressure on the pipe.
